The Series 500 portable ozone gas monitor enables accurate real-time measurement of ozone in air. Data is stored on board the Series 500 with a maximum 8,188 records available. To download the data a USB cable is supplied for connection to PC. Free PC software provided with the Series 500 takes the data and presents it in a chart or table view. Data can be downloaded and viewed in Excel.

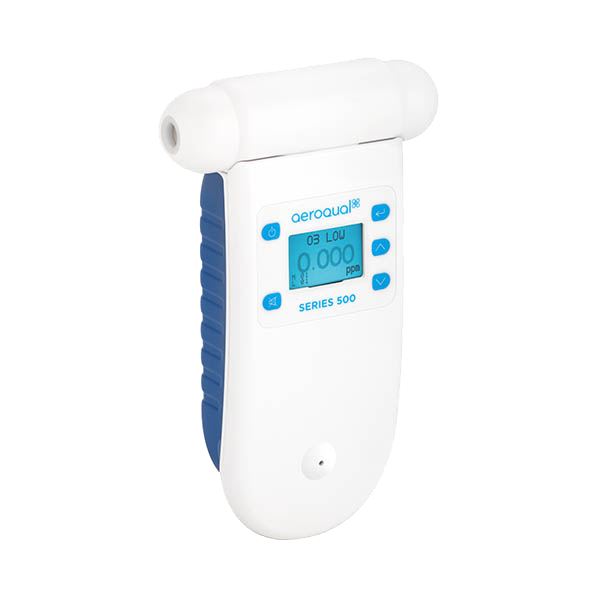

Series 500 – Portable Ozone Monitor:
The Series 500 portable ozone gas monitor enables accurate real-time measurement of ozone in the air. Data is stored onboard the Series 500 with a maximum of 8,188 records available. To download the data a USB cable is supplied for connection to the PC. Free PC software provided with the Series 500 takes the data and presents it in a chart or table view. Data can be downloaded and viewed in Excel.
The monitor can also operate in control mode. Upper and lower control limits can be easily set directly on the display. Using the 0-5V output the Series 500 analyzer can be used to switch on or off an externally connected device such as an ozone generator or system in the presence of a predetermined level of gas. By selecting the optional wall-mount bracket and plugging in mains power the Series 500 is effectively able to act as a fixed monitor as well as a handheld portable device.
Other features on the Series 500 include monitor ID and location ID. Monitor ID identifies the monitor uniquely and ensures that all data from it are tied to that monitor. Location ID can be used to tag measurements to a specific location which is helpful when sampling at several sites over a day or week. High and low alarms can also be configured to alert when ozone concentrations have reached a user-defined set point.

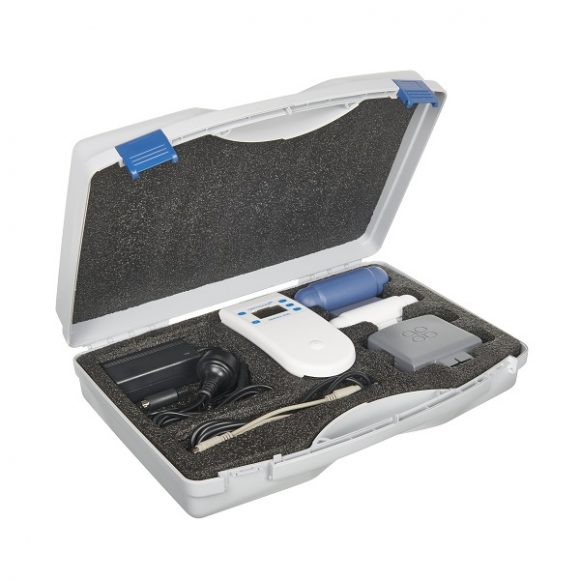

Series 500 – Portable Ozone Monitor kit contain:
- Monitor base
- LCD digital display
- Lithium battery and charger
- In-built datalogger
- 0-5V output
- Zero and span adjustment
- Low and high alarm
- Monitor to USB cable
- PC software
Applications
- Source and leak detection
- Process control
- Health and safety monitoring
- Indoor air quality
Technical Specifications
- Measurement units Gas: ppm or mg/m3 | Humidity: % | Temperature °C or °F
- Reading functions Instant, minimum, maximum, average
- Power supply 12Vdc (power adaptor/charger supplied 100-250Vac)
- Approvals Part 15 of FCC Rules; EN 50082-1: 1997; EN 50081-1: 1992
- Clock function Real-time
- Digital interface RS-232 to USB
- Data logging Up to 8,188 records (2706 incl. Temp/RH)
Key Features
- Fits comfortably in the hand
- One monitor compatible with four different types of ozone sensor
- Data logged directly onto monitor base
- Audible alarm functionality
- Remote sensor capability
- Long life lithium battery technology
- Zero and span calibrate in the field
- Free PC software (Windows 7, 8, XP compatible)
- Connect direct to PC via USB
