Ambient Air Quality Monitor
A compact and affordable solution for personal and community monitoring.
Ambient Monitor Variants
Ambient air quality monitoring devices are where your search stops.
- Ambient PM
- Ambient Lite
- Ambient Lite Solar
- Ambient Pro
Ambient PM
It is the basic ambient monitor that measures AQI, PM2.5, PM10, temperature, and humidity providing a comprehensive overview of the air quality around you.
Features

Low-cost real-time air quality monitoring

Compact and lightweight design

Fully Waterproof Housing

Portable and easy to carry anywhere
- AQI
- PM1
- PM2.5
- PM10
- Temp.
- Humi.
- Noise
Ambient Lite
It is a mid-range model that is ideal for small businesses and community organizations. It measures PM2.5, PM10, CO2, SO2, NO2, O3, temperature, humidity.
Features

Low-cost real-time air quality monitoring

Cloud storage & web-dashbard & apps

Fully Waterproof Housing

Multiple sensors available
- AQI
- PM1
- PM2.5
- PM10
- CO
- CO2
- SO2
- NO
- NO2
- O3
- TVOC
- H2S
- Temp.
- Humi.
- Noise
Ambient Lite Solar
Our Ambient Lite Solar Air Quality Monitor where your search stops if you are looking to quantify the concentration and impact of air toxin at an outdoor location.
Features:

Low-cost real-time air quality monitoring

Data on website, mobile & table apps, TV

Fully Waterproof Housing

Inbuilt Solar Panel
- AQI
- PM1
- PM2.5
- PM10
- CO
- CO2
- SO2
- NO
- NO2
- O3
- TVOC
- H2S
- Temp.
- Humi.
- Noise
Ambient Pro
It is the most advanced monitor in Prana Air’s Ambient family. It measures all of the same pollutants as the Ambient Lite monitor, plus temperature and humidity.
Features

Low-cost air quality monitors

Data on website, mobile & table apps, TV

Fully Waterproof Housing

Multiple air sensors (PM & Gases)
- AQI
- PM1
- PM2.5
- PM10
- CO
- CO2
- SO2
- NO
- NO2
- O3
- TVOC
- H2S
- Temp.
- Humi.
- Noise
- Noise
- Wind Direction
- Wind Speed
- Rainfall
- LUX
- UV Index
Why Ambient Air Monitors?

Real-time air quality monitoring

Low-cost air quality monitors/sensors

Highly accurate and reliable sensors

Data accessibility on website, mobile & TV apps

Multiple modes of connectivity

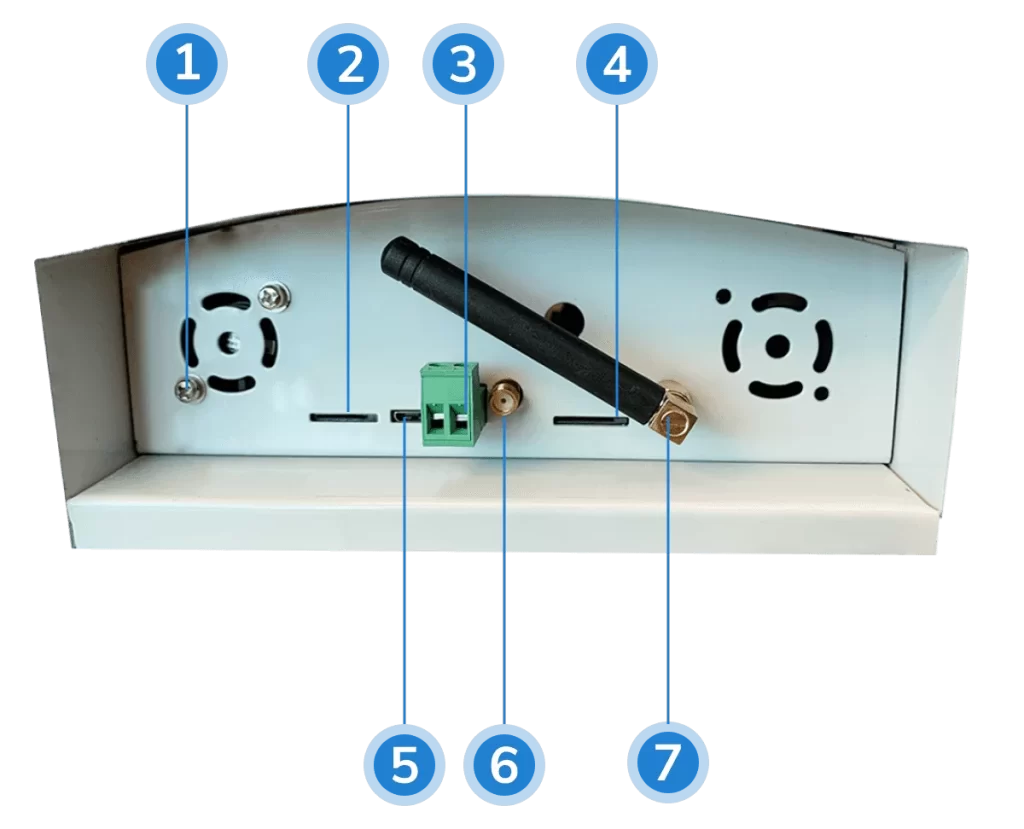

Parts & Labels
Qsafe indoor air quality monitors use advanced sensors for real-time tracking of indoor air pollutants, delivering a thorough insight into your indoor air quality.
- Ambient PM
- Ambient Lite
- Ambient Pro
- Ambient Lite Solar

WIFI Button
WIFI Button
WIFI Button
WIFI Button

Fan
Micro SD Card Slot
RS-485 Slot
SIM Slot
USB Power Supply
GPS Antenna Slot
GSM Antenna Slot

Weather LUX, Wind Speed, Wind Direction, UV and Rainfall
Gases SO2, NO2, CO, O3, TVOCS, H2S and NH3
Noise & PM (1,2.5 & 10), Temperature, Humidity and Pressure

Fan
Micro SD Card Slot
RS-485 Slot
SIM Slot
USB Power Supply
GPS Antenna Slot
GSM Antenna Slot
Ambient Air Quality Monitoring Devices
Outdoor air quality monitoring is an integral part of environmental assessments. Proper air monitoring helps in the formulation of an efficient action plan to mitigate air pollution. Conventionally, the Continuous Ambient Air Quality Management System (CAAQMS) used for ambient air monitoring is a very extensive and expensive set-up. However, not only does our device exemplify efficiency, but it is also compact and cost-efficient.
The primary aspect for determining environmental stability is the Continuous Ambient Air Quality Monitoring System (CAAQMS). There are many factors that control the quality of air and many sources contributing to it such as natural, industrial and anthropogenic. Meteorological factors also alter and impact air quality. Outdoor air pollution does not just jeopardize the living. It is also detrimental to the ecology and the atmospheric chemistry of the earth. Chronic Obstructive Pulmonary Disease (COPD) and asthma are examples of bad air quality for human health. Thus, outdoor air monitoring is essential. Conventionally, the Continuous Ambient Air Quality Management System (CAAQMS) used for ambient air monitoring is a very extensive and expensive set-up as it involves regular filter changes, and importing regulations. Prana Air provides ambient air quality monitors that are easy to use, portable, and highly accurate and cost-effective. The monitors come with detecting sensors for particulate matter, nitrogen dioxide, sulfur dioxide, hydrogen sulfide, carbon monoxide, and ozone based on different sensing techniques.
Using Continuous Ambient Air Quality Management System helps you to assess pollution extent, create awareness among the general public, decisions, and policymaking, and provides you with data for air quality model evaluation and emission control strategies.

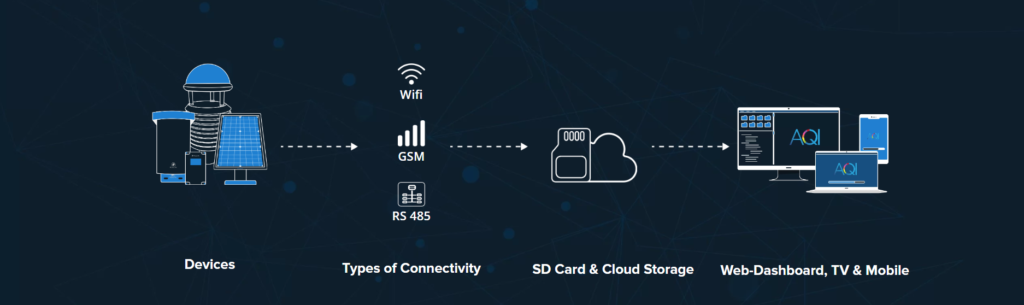

Modes of Connectivity

Technical Specifications
- Ambient PM
- Ambient Lite
- Ambient Pro
- Ambient Lite (Solar)
-
Basic Parameters:
- AQI, PM1, PM2.5, PM10, Temperature and Humidity
-
Basic PM + Weather Station:
- Basic parameters + LUX, Solar Irradiance, Wind Speed, Wind Direction, Rainfall, Gust & UV Index
-
Connectivity
- Wifi or GSM
-
Weight:
- 600g (Approx)
-
Data Interval:
- 30s to 1hour
-
USB Type:
- Micro USB
-
Mobile app:
- AQI App (available on ios and android)
-
Dimensions:
- 16.5 x 5 x 11.5 (cm)
-
Storage:
- AQI Cloud Storage
-
Housing
- Weatherproof
-
Parameters:
- Ambient PM + CO2, NO2, CO, SO2, O3, NO, TVOC(MOS) and H2S
-
Connectivity
- Wifi or GSM(4G) and RS-485 (MODBUS)
-
Weight:
- 2Kg (Approx)
-
Battery:
- 5000mAh (Optional)
-
USB Type:
- Micro USB
-
Online Storage:
- AQI Cloud Storage
-
Data Interval:
- 30 sec to 1 Hour
-
Mobile app:
- (available on ios and android)
-
Dimensions:
- 20.5 x 14 x 38 (cm)
-
Battery Backup:
- 4 Hours
-
Housing
- Weatherproof and Compact
-
Offline Storage:
- Micro SD Card Storage
-
Parameters:
- Ambient Lite + O3, CH4, Noise, NH3, LUX, Wind Speed, Wind Direction, Rainfall and UV Index
-
Connectivity
- Wifi or GSM(4G) and RS-485 (MODBUS)
-
Weight:
- 1.4kg. (Approx)
-
Battery:
- —
-
USB Type:
- —
-
Data Interval:
- 30 sec to 1 Hour
-
Mobile app:
- AQI Mobile App
-
Dimensions:
- 18 X 38 (cm)
-
Storage:
- AQI Cloud Storage
-
Housing
- Weatherproof
-
Parameters:
- PM10, PM2.5 & PM1 Temp, Humidity, CO2, NO2, CO, SO2, O3, NO, TVOC H2S, Noise, CH4, O2
-
Connectivity
- Wifi/4G or RS485 connectivity
-
Weight:
- 7.5 kg
-
Power:
- Inbuilt Solar Panel
-
Battery:
- 20,000mAh
-
Data Interval:
- 30 sec to 1 Hour
-
Mobile app:
- AQI App (available on ios and android)
-
Dimensions:
- 38 x 54 x 9 (cm)
-
Storage:
- SD Card/AQI Cloud Storage
-
Housing
- IP68 Weatherproof Housing
