PM SENSOR (LASER)

For outdoor dust – air quality monitoring applications Range upto (0-31,000 µg/m³)

PM SENSOR For outdoor particulate matters

PAS-OUT-01 is an optically designed industrial-grade, digital laser sensor to measure particulate matter – dust particles. It comes with a built-in laser and photoelectric receiving module. Different than its contemporaries, PAS-OUT-01 is calibrated for PM10 and PM2.5 separately. It works on the principle of 90° light scattering. The light that strikes the aperture of the mirror at 90° is reflected towards the sensor. The photodiode registers pulse for as long as the light is reflected. The electrical signal thus received is converted into the concentration of particulate matter by specific algorithms.

Outdoor PM2.5 Dust Sensor logo Main Features

  • Detection of PM2.5 and PM10 distinctively
  • Laser sensor with light scattering
  • Rapid and Accurate Detection
  • Moisture-Proof circuit board
  • Anti-dust duct

Applications of PM Sensor Designed To Be Discreet

PM2.5 Sensor – Monitor to Measure Construction Pollution

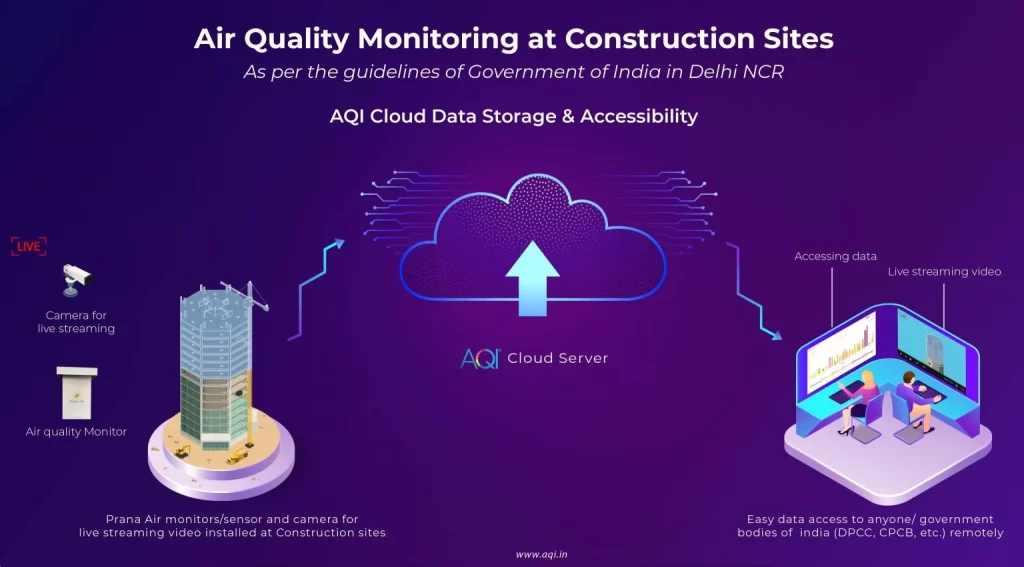

Qsafe provides the solution of installing a PM sensor/monitor at the construction site to measure dust pollution due to construction. As per the guidelines of Govt. of India, Delhi NCR, few instructions are given in order to curb the construction pollution and demolition activities in Delhi NCR, India. Installation of PM10, PM2.5 sensor – air quality monitor, and live streaming camera at the construction site is mandatory, and online data access is also required as announced on 1st Oct 2021.

Outdoor PM Air Quality Sensor Amazing Features

  • Fan closed-loop control, stable flow
  • Own fault detection function
  • Design of anti-dust duct
  • Laser constant power control
  • Circuit board moisture-proof design
  • Small size, easy To install
  • Fast detection speed
  • Good product consistency
  • Strong anti-interference ability
  • Multiple communication modes, such as IIC, 485, etc.

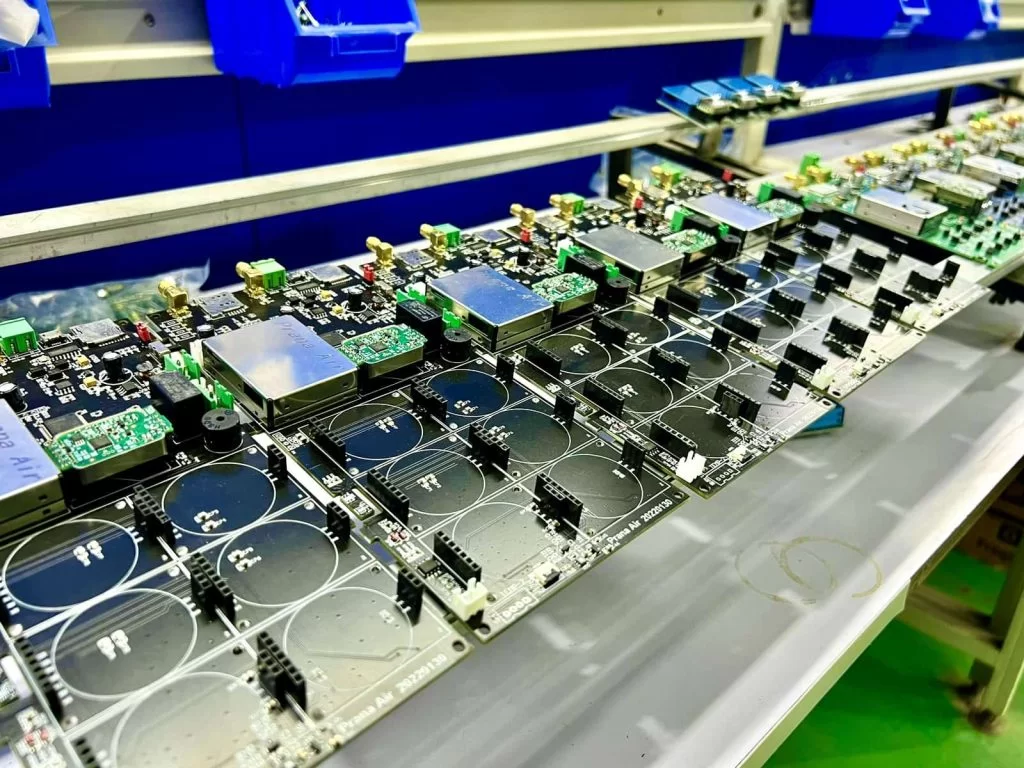

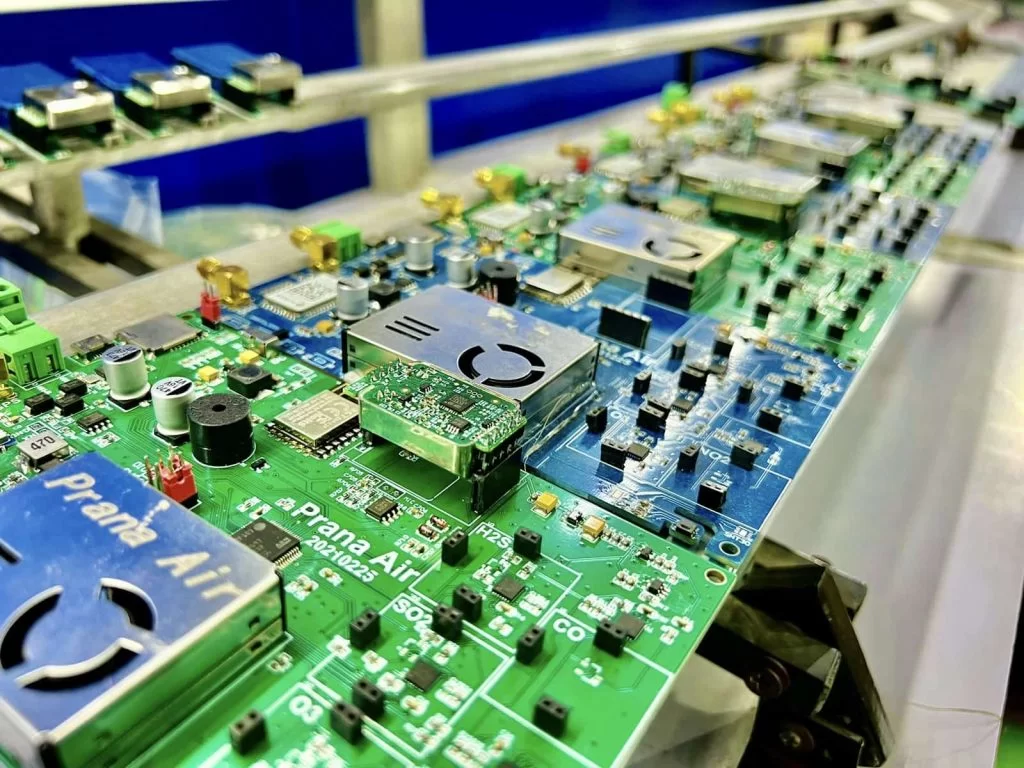

PM Sensor’s PCB

Prana Air comes with its original compatible PCB boards for PM2.5 sensors that are energy efficient, low-cost, compact in size, and high quality.

  • PCB’s energy efficiency reduces power consumption.
  • Low cost makes PCB boards affordable.
  • High quality ensures peak performance of the sensor.
  • Accurate data collected helps users make informed decisions.

Sl.No. Feature  Benefits
1 Anti-dust duct and durable components. Lifetime of more than a decade with continuous operation of 24 hours/day. Maintenance-free, thus avoiding problems related to sensor drift or malfunction.
2 Laser-based scattering principle and Advanced algorithms.  Precise and reliable measurements.
3 Accurate high-resolution particle sizing.  Enables device-specific actions based on detected particle composition. Broadens the range of applicability pertaining to specific particle size.
4 Small, ultra-slim package  Easy to integrate into devices with limited size and space.
5 Fan with in-built closed-loop control and automated feedback mechanism  Stabilizes airflow and sends feedback to the microprocessor to keep rotations per minute constant. Optimizes the operational life of the sensor.
6 Laser is emitted at a constant wavelength  Decreases signal to noise ratio, therefore is no attenuation at high temperatures.
7 Moisture-proof design  Reduces the probability of error in optical measurements due to humidity
8 Fully calibrated digital output for particle number and mass concentration values. UART and I2C interfaces.  Simple interfacing and read-out of multiple outputs.
