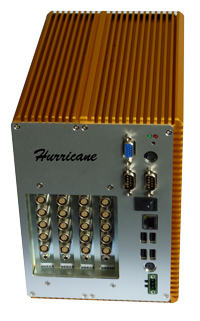

Hurricane

Messsystem (HARMONIE-kompatibel)

Features

Universal portable measuring system for acoustics and vibration
16 or 32 channels DC … 20 kHz
Connectors LEMO7 or BNC or DSUB37 (BNC-adapter-box, 0,2m or 10m cable)
integrated PC for mobile usage
Windows 7 (32 bit)
fan less design in robust aluminium case
class I sound level meter according to IEC 60651, IEC 60804, IEC 61672
integrated PC: Intel core 2 duo processor, HDD or SSD, 4x USB, 2x RS232, VGA, LAN
power supply: 12 … 24 V DC / 90 … 230 V AC

The station allows installation of up to four Harmonie-PCI measuring cards.

PC configuration:
Processor	Intel dual Core embedded, 2GB RAM
Storage medium	500GB HDD or SSD
Interface	4x PCI, 4x USB, LAN, RS232, VGA, PS/2
Operating system	Windows 7 (32 bit only)

General technical specifications Harmonie-PCI
	HARMONIE-PCI_quadro_BNC	HARMONIE-PCI_quadro	HARMONIE-PCI_octav
Order No.	974080.0	974003.8A	974007.0A
Input channels 2/4/8
Number of measuring channels	4	4	8
Female input connectors	BNC	LEMO7	DSUB37
Resolution	16 bit	16 bit	16 bit
Real-time bandwidth	DC … 20 kHz	DC … 40 kHz	DC … 20 kHz
Dynamic range	80 dB	80 dB	80 dB
Sample rates	51.2 kHz	51.2 kHz, 102.4 kHz	51.2 kHz
Amplification	-20 dB … 40 dB in 40 dB steps	-20 dB … 40 dB in 40 dB steps	-20 dB … 40 dB in 40 dB steps
Over-voltage detection	yes	yes	yes
Phase shift	< 0.1° @ at gain –20 dB 20Hz … 20 kHz	< 0.1° @ at gain –20 dB 20Hz … 20 kHz	< 0.1° @ at gain –20 dB 20Hz … 20 kHz
Input coupling	DC, AC 0.15Hz, HP 10Hz, LP 2kHz	DC, AC 0.15Hz, HP 10Hz, LP 2kHz	DC, AC 0.15Hz, HP 10Hz, LP 2kHz
Microphone voltage supply	–	±14V, 200V	–
IPC current supply	2mA	2mA	2mA
*Slow channels 1-7 )**
Resolution	–	12 bit	–
Input voltage range	–	0 V … 15 V	–
Output channels 1-2
Sampling rate h	51.2 kHz	51.2 kHz	51.2 kHz
Max. output voltage	±3.16Vpeak	±3.16Vpeak	±3.16Vpeak
Trigger channels
Trigger	1 In: Trigger / tacho, 1/60 Hz…1 MHz TTL, max +15 V	2x In: Trigger / tacho, 1/60 Hz…1 MHz TTL, max +15 V; 2x Out	2x In: Trigger / tacho, 1/60 Hz…1 MHz TTL, max +15 V; 2x Out
Special channels
Synchronisation	SYNC-BUS	SYNC-BUS	SYNC-BUS

*) 7 channel or 5 channel + 2 trigger channels

Order detail HURRICANE_base unit and Hamonie PCI accessories
Order no.	Description
974400.0	HURRICANE_base unit
974062.4	Harmonie SYNC cable (1-4 measuring boards)
974051.1	DSUB37 connector box oxtav (12 x BNC, 0,2m cable)
974067.3	DSUB37 cable 10m
971010.4	LEMO7 / BNC ADAPTER
