Piezoelectric force sensors are frequently used for dynamical analysis. They provide information on the induced forces in modal and stress analysis.
For our measuring systems we offer force sensors of the following companies:
Below we have listed several force sensors from our product line. The listed models have an integrated ICP® pre-amplifier. For dynamic force measurements single- and three-axis force sensors are available. We are happy to support you in selecting appropriate sensors. Please do not hesitate to contact us.
There is no translation available.
| Uniaxial force sensors | Measuring range | Frequency range | Sensitivity | Maximum static force | ||
|---|---|---|---|---|---|---|
|
208C02 Force Sensor |
0.4448 kN |
0.001 Hz – 36 kHz |
11241 mV/kN |
2.224 kN |
800526.0
|
|

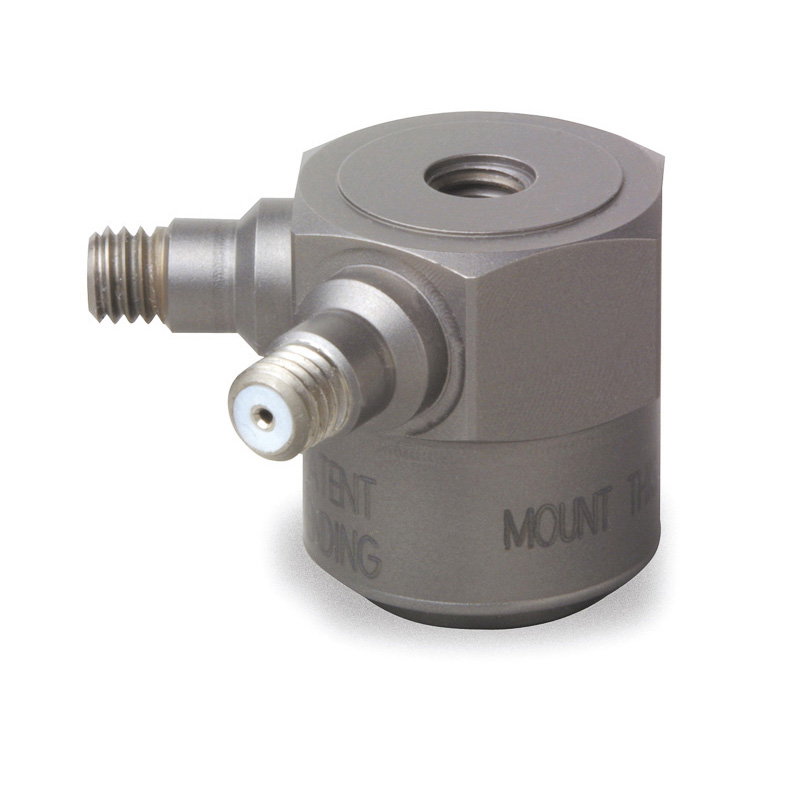

288D01 Impedance head, force/accel |
0.2224 kN |
1 Hz – 5 kHz |
22400 mV/kN |
2.224 kN |
801120.1
|
| Triaxial force sensors | Measuring range | Frequency range | Sensitivity | Maximum static force | ||
|---|---|---|---|---|---|---|
|
M261A02 ICP Triax Force Sensor |
4.45 kN |
0,01 Hz – 10 kHz |
560 mV/kN |
5.87 kN |
801416.5
|
