Microphone

High-quality measurement microphones are essential for standard-compliant measurements.

Additionally, we offer matching accessories as for example wind screens, calibrators, tripods, telescoping masts, goose necks, etc. from our own production as well as from other manufacturers.

Below we have listed several microphones from our product line. We are happy to support you in selecting appropriate microphones. Please do not hesitate to contact us.

There is no translation available.

Free-field microphone 200V   Dynamic range Frequency range Sensitivity
MM221 1/2" Condenser Microphone Class 1
MM221 1/2″ Condenser Microphone Class 1
15 dB(A) – 146 dB
3.5 Hz – 20 kHz
50 mV/Pa
800859.3
MK221 1/2" Condenser Microphone Class 1
MK221 1/2″ Condenser Microphone Class 1
15 dB(A) – 146 dB
3.5 Hz – 20 kHz
50 mV/Pa
800229.0
MK222 1/2" Condenser Microphone Class 1
MK222 1/2″ Condenser Microphone Class 1
15 dB(A) – 146 dB
0.5 Hz – 20 kHz
50 mV/Pa
800230.5
MK202 1/2" Condenser Microphone Class 1
MK202 1/2″ Condenser Microphone Class 1
22 dB(A) – 158 dB
10 Hz – 40 kHz
14 mV/Pa
800228.2
MK301 1/2" Condenser Microphone Class 1
MK301 1/2″ Condenser Microphone Class 1
35 dB(A) – 168 dB
5 Hz – 100 kHz
5 mV/Pa
800234.6

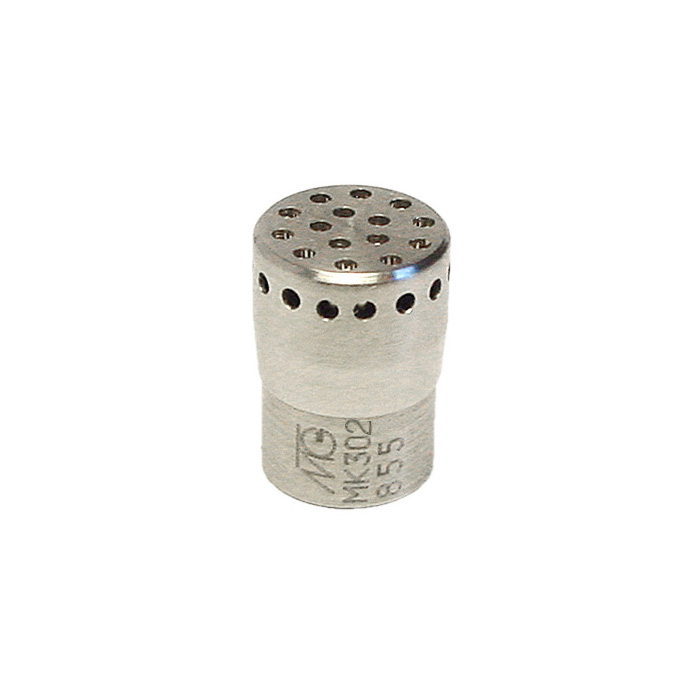

MK 302 1/4" Condenser Microphone Class 1
MK 302 1/4″ Condenser Microphone Class 1
39 dB(A) – 172 dB
5 Hz – 60 kHz
3 mV/Pa
800235.4

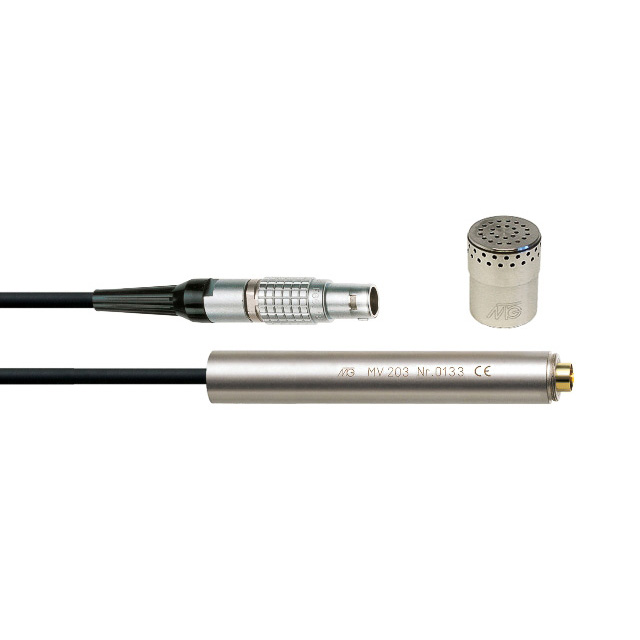

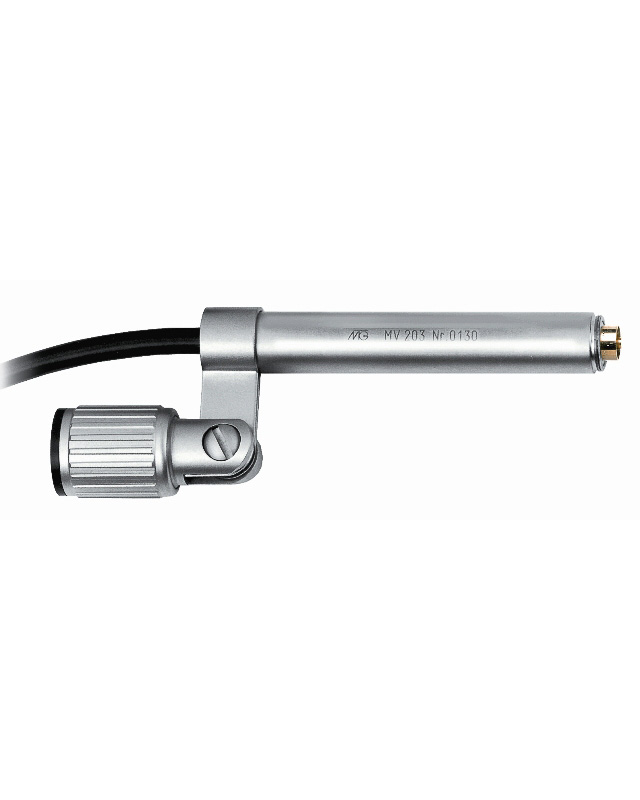

MV203 1/2" Preamplifier Lemo7 (Condenser)
MV203 1/2″ Preamplifier Lemo7 (Condenser)
800077.0
Free-field microphone ICP / IEPE   Dynamic range Frequency range Sensitivity
MM255 1/2" Microphone Class 1
MM255 1/2″ Microphone Class 1
3.5 Hz – 20 kHz
50 mV/Pa
801441.3

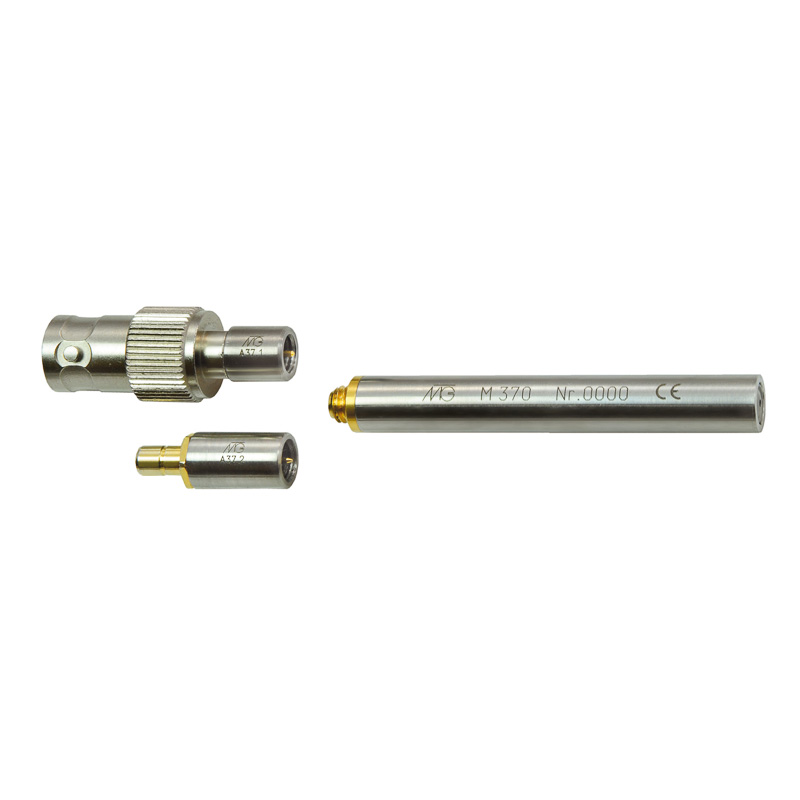

M370 1/4" Microphone Class 1
M370 1/4″ Microphone Class 1
28 dB(A) – 130 dB
20 Hz – 20 kHz
50 mV/Pa
801461.4
MK222E 1/2" Microphone Class 1
MK222E 1/2″ Microphone Class 1
15 dB(A) – 146 dB
0.5 Hz – 20 kHz
50 mV/Pa
801090.8
MK301E 1/4" Microphone Class 1
MK301E 1/4″ Microphone Class 1
36 dB(A) – 158 dB
5 Hz – 100 kHz
5 mV/Pa
801379.1
MV210 1/2" Preamplifier BNC
MV210 1/2″ Preamplifier BNC
800245.0
MV204 1/2" Preamplifier Lemo7 (Electret)
MV204 1/2″ Preamplifier Lemo7 (Electret)
800242.6

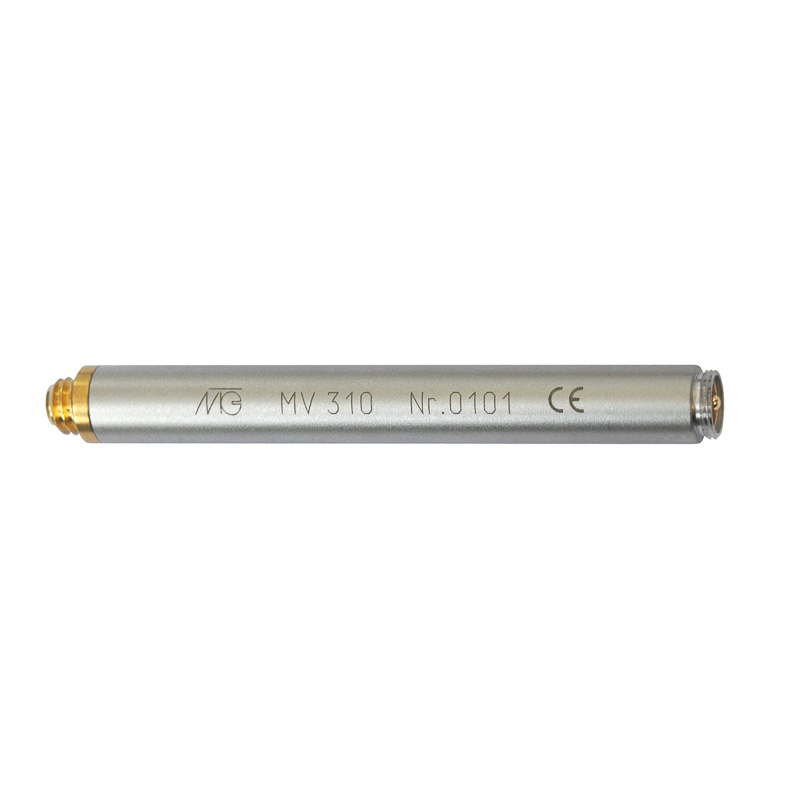

MV310 1/4" Preamplifier 10-32
MV310 1/4″ Preamplifier 10-32
801091.6
Special microphones   Dynamic range Frequency range Sensitivity
MK231 1/2" Random Incidence Condenser Microphone Class 1
MK231 1/2″ Random Incidence Condenser Microphone Class 1
15 dB(A) – 146 dB
3.5 Hz – 8 kHz
50 mV/Pa
800232.1
MK231E 1/2" Random Incidence Microphone Class 1
MK231E 1/2″ Random Incidence Microphone Class 1
15 dB(A) – 146 dB
3.5 Hz – 8 kHz
50 mV/Pa
801804.8
GFM 210
GFM 210
15dB(A) – 146 dB
3.5 Hz – 20 kHz
50 mV/Pa
802372.8
GFM 920.1
GFM 920.1
15dB(A) – 146 dB
3.5 Hz – 20 kHz
50 mV/Pa
801069.2
