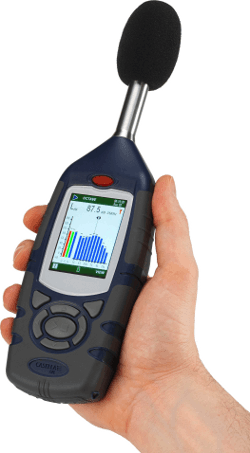

CEL-62X
Integrating sound level meter for occupational safety and environmental protection with octave analyzer
PTB model regisration 21.21 / 10.01
Overview
Features
- Compact, robust design
- Easy operation
- Single, wide measuring range
- High-resolution colour display
- Real-time octave band analysis
- Simultaneous measurement of all occupational noise parameters according to ISO 9612
- Instrument menu in 6 languages
- Pre-defined and user-selectable configurations available
- Automatic calibration function
- Long battery life
- DC level output
Applications
- Evaluation of occupational noise exposure
- Hearing protection selection
- Noise exposure calculation
- Ensures compliance with the occupational noise standards and regulations
The CEL-620 is available as IEC61672-1 Class 1 or Class 2 sound level meter. It comes with complete accessories, including sound calibrator, carrying case, wind screen, user manual and USB cable.
The sound level meter provides the means for octave band frequency analyses (16Hz – 16kHz). The analysis is performed in real time with a measuring range of 140dB. Therefore it is not necessary to change the measuring range. The CEL-620 sound level meter is equipped with a USB interface. Stored data may be exported in a Microsoft Excel-editable format. Alternatively the data may be downloaded with the Casella Insight software.
Options
| Version | Order no. | Features |
|---|---|---|
| CEL-620.B1 SLM type 1 PTB | 801460.6 | Class 1 sound level meter, octave analyzer, accessories: carrying case, wind screen |
| CEL-620.B2 SLM type 2 | 801196.6 | Class 2 sound level meter, octave analyzer, accessories: carrying case, wind screen |
| CEL-120/1 Class 1 calibrator | 801391.0 | Class 1 calibrator, 94/114dB |
| CEL-120/2 Class 2 calibrator | 801217.1 | Class 2 calibrator, 114dB |
Standards and approvals
Standards and approvals
IEC 61672: Class 1 sound level meter
IEC 60651: Class 1 sound level meter
ANSI S1.4 – 1983 (R2006): American National Standard – Class 1 sound level meter
ANSI S1.43 – 1997 (R2007): American National Standard – Class 1 integrating-averaging
IEC 60651 – 1979: Octave band filters (CEL-620B model only)
IEC 61260: Class 0 filter
ANSI S1.11 – 2004: American National Standard – Filters of class 0
Approvals
Germany
PTB type approval 21.21 / 10.01
The Casella Insight software allows the comfortable management of data and includes a report feature. For further information please refer to CASELLA INSIGHT.
Technical specifications
| Accuracy | Class1 or Class 2 according to IEC61672, IEC61260 Class 0, ANSI S1.43, IEC60651 and ICE60804 |
| Measuring range | RMS 20…140dB, peak 143dB |
| Measurement values | LXY, LXYmax, LXYmin, LXeq, LXpeak, Lavg, LC-LA, LXIeq, LTM3, LTM5, LAE 1/1 octave bands: LXY, LXeq, LXYmax Where X is the frequency weighting A, C or Z and Y is the time weighting Fast (F), Slow(S) or Impulse (I). All weightings are measured simultaneously. |
| Frequency weighting | A, C, or Z |
| Time weighting | Fast, Slow, Impulse |
| Microphone | 1/2″ measuring microphone, permanently polarized |
| Operating time | 11h (20h without backlight) |
| Interface | USB |
