Features

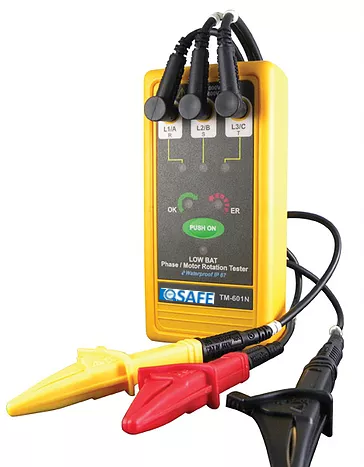

• Waterproof Phase/Motor Rotation Tester.
• CATIV 600V,CATlll 1000V.
• Check the 3 phase wires connection, L1-A-R, L2-B-S,and L3-C-T through the 3 red LED's, to prove that each wire is connected correctly.
• Check if L1, L2 and L3 are in connected to the 3 phase motor.
• Two 500mA I 700V fuses protection meeting the UL requirements.
• Check the motors direction of rotation, and indicate "ER“
  (counter-clockwise) with a red LED and "OK" (clockwise) with a green LED.
• Display by LED indicators.
• Inter-phase voltage: 45V AC up to 600V AC.
• Signal Frequency Range: 45Hz to 400Hz.
• Test Currents inter-phase less than 3.5mA.
• Auto power off after 15 minutes.
• Two UL 500mA/700V fuse protection.
• Low battery detection.
• Waterproof resist.

Application

• Phase sequence testing. Three phase motor installation and maintenance.
• Check motors for rotation direction.
• Identifies the phase sequence of three phase electrical systems.
• Indicates normal or reversed phases as well as loss of phase.
